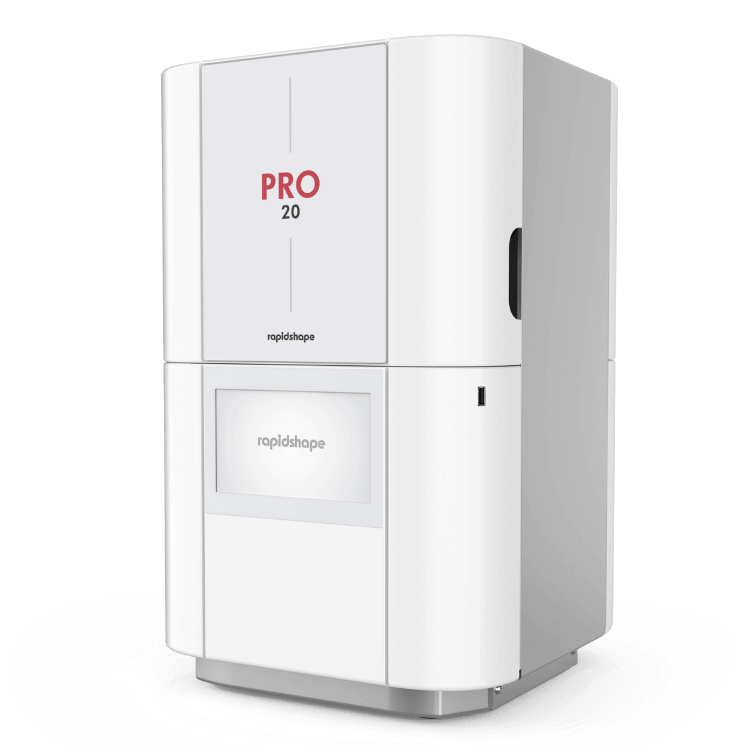

RS PRO 20
Powerful, Reliable, Optimized for Dental 3D Printing
The Rapid Shape PRO 20 delivers unmatched print performance across 15+ dental workflows.
Validated with over 200 dental resins, it offers maximum versatility while consistently achieving next-level precision for Crowns & Bridges, Splints, Master Models, and more, all with a standard 50-micron layer thickness at unbeatable printing speeds.
Technology for Dental 3D Printing Efficiency
No compromise: Exceptional Speed and Precision
15 Minutes at 50μm
layer thickness
Turbo
Say Goodbye
to
Polishing
Reduces more than 90% of polishing work
RS Crystal Polish
Ease of Use Combined with Superior Print Results
Smart connection from printer to wash to cure
Peak Performance
Special Offer
Experience Next-Level Speed and Versatility
Crown & Bridge Models
| Print Capacity: | 3 Models with Dies |
| Print with RS Turbo: | 15 Minutes |
| Standard Print Time: | 25 Minutes |
| Layer Thickness: | 50 µm |
| WASH – Wash Time: | 10 Minutes |
| CURE – Cure Time: | 10 Minutes |
Occlusal Guards
Printed with the
RS Crystal Polish Reservoir
| Print Capacity: | 8 Occlusal Guards |
| Standard Print Time: | 90 Minutes |
| Layer Thickness: | 50µm |
| WASH – Wash Time: | 10 Minutes |
| CURE with Vacuum – Cure Time: | 10 Minutes |
Crown and Bridges
Denture Teeth, and other prosthetics
| Print Capacity: | up to 50 Single-unit Crowns |
| Standard Print Time: | 15 Minutes |
| Layer Thickness: | 50µm |
| WASH – Wash Time: | 10 Minutes |
| CURE – Cure Time: | 10 Minutes |
Denture Bases
| Print Capacity: | up to 2 C&B Models |
| Standard Print Time: | 30 Minutes |
| Layer Thickness: | 50 µm |
| Post Processing: with WASH/CURE |
13 Minutes |
Technical Specifications
| Technology | Digital Light Processing (DLP) with Force Feedback |
| Wavelength | 385nm |
| Build Plate Size (W x D x H) | 133 x 75 x 115 mm 5.2 x 3 x 4.5 inches |
| XY Accuracy | +/-34μm |
| Available Print Layer Thickness | 25-150μm |
| Material Availability | 200+ |
| Chamber Heating | up to 35° C. |
| Connectivity | WiFi, Ethernet, USB |
| Device Dimensions | 334 x 357 x 544 mm 13 x 14 x 21.4 inches |
| Device Weight | 27kg 59 lbs. |
| Touch Screen Size | 7 inches |
| Power Supply | 110-250V, 50/60Hz |
Post Processing Solutions
WASH
- 1-click process with smart connection from printer to wash to cure
- 2-step wash cycle and drying mechanism
- Reduced smell with activated carbon filtration
CURE
- Achieving peak performing 3D prints with 360° curing in a vacuum environment
- Stackable with ONE wash saving valuable bench space
